Specifications

		GENERAL

					Car Type
					Mid-Engine Coupe

					Drive Train
					Rear-Wheel Drive

					Passenger Capacity
					2

					Cargo Capacity
					Wallet and Two Sunglass Cases

					Driving Position
					Reclined 45 Degrees, Offset 2" Towards the Center

					Restraints
					6-Point Harness

Car Type	Mid-Engine Coupe
Drive Train	Rear-Wheel Drive
Passenger Capacity	2
Cargo Capacity	Wallet and Two Sunglass Cases
Driving Position	Reclined 45 Degrees, Offset 2" Towards the Center
Restraints	6-Point Harness

		PERFORMANCE

					Zero to 60 mph
					TBD (But Well Under 3.0 Seconds)

					Top Speed
					214 MPH with 0.81 Drop Gear (255 MPH with 0.68 Drop Gear)

Zero to 60 mph	TBD (But Well Under 3.0 Seconds)
Top Speed	214 MPH with 0.81 Drop Gear (255 MPH with 0.68 Drop Gear)

ENGINE

Type	Fully-Built, LS7-Based V8 by Thomson Automotive
Displacement	427 ci / 7.0 Liters

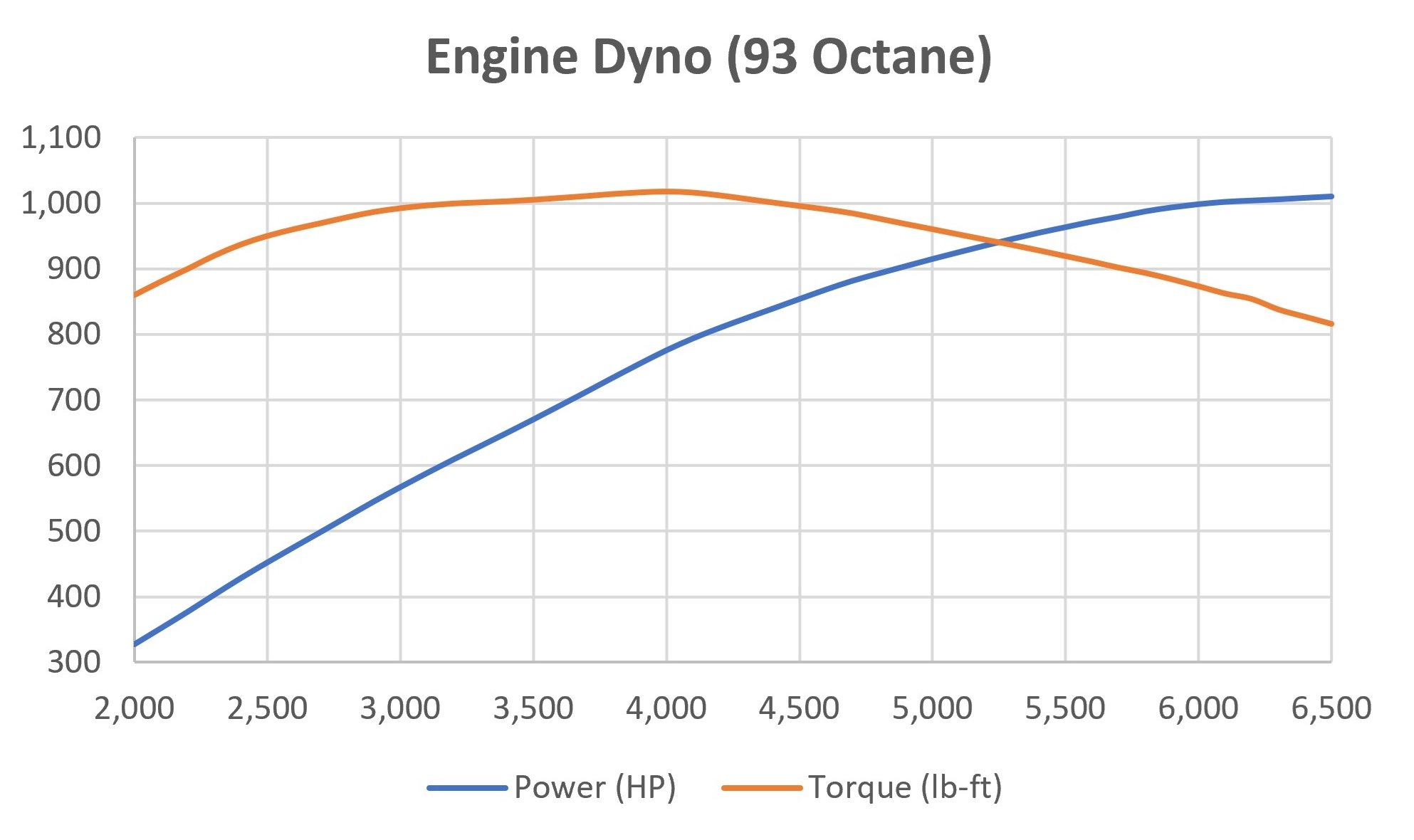

Maximum Power	1,009 HP @ 6,500 RPM on 93 Octane
Maximum Torque	1,017 lb-ft @ 4,000 RPM on 93 Octance
Redline	7,000 RPM
Aspiration	Roots-Style Supercharger with Dual Water-to-Air Intercoolers
Fuel Type	103+ Octane or Flex Fuel (E10-E98)
Fuel Storage	25-Gallon, FIA-Compliant, Foam-Filled Flexible Bladder
Oil System	Dailey Engineering 3-Stage Dry Sump
Control	MoTeC M150
Traction Control	Cockpit-Adjustable Slip Target; 5 Presets or Incremental Adjustment

		TRANSAXLE




					Type
					Albins ST6-M Sequential with Straight-Cut Gears


					Number of Gears
					6 Forward and 1 Reverse


					Gear Ratios



						    First
						    2.357


						    Second
						    1.824


						    Third
						    1.474


						    Fourth
						    1.238


						    Fifth
						    1.043


						    Sixth
						    1.000





					Drop Gear Options
					0.68, 0.81, 0.88, 0.96, 1.00, 1.04, 1.07 and 1.13 (See Table Below)


					Process to Swap Drop Gears
					Simple 15-Minute Operation Requiring a Torque Wrench and One Socket


					Shift Duration
					As Low as 35ms, Depending on Shift Tune


					Shift Mechanism
					Roller Barrel with Pent-Roof Dog Engagement


					Shift Actuation
					Pneumatic with On-Board Compressor (Maximum  Pressure 9.8 bar / 142 psi)


					Shift Control
					Semi-Automatic, Closed-Loop via MoTeC GPRP with Paddle Shift


					Number of Shift Tunes
					2 (Street and Track)


					Clutch
					Triple Carbon/Carbon







          Redline Speed (MPH) by Gear and Drop Gear



	        0.68
	        0.81
	        0.88
	        0.93
	        0.96
	        1.00
	        1.07
	        1.13


	        First
	        99
	        83
	        76
	        72
	        70
	        67
	        63
	        60


	        Second
	        128
	        107
	        99
	        94
	        91
	        87
	        81
	        77


	        Third
	        158
	        133
	        122
	        116
	        112
	        108
	        101
	        95


	        Fourth
	        188
	        158
	        146
	        138
	        133
	        128
	        120
	        113


	        Fifth
	        224
	        188
	        173
	        164
	        158
	        152
	        142
	        135


	        Sixth
	        255
	        214
	        197
	        186
	        180
	        173
	        162
	        153


Redline Speed (MPH) by Gear and Drop Gear
	0.68	0.81	0.88	0.93	0.96	1.00	1.07	1.13
First	99	83	76	72	70	67	63	60
Second	128	107	99	94	91	87	81	77
Third	158	133	122	116	112	108	101	95
Fourth	188	158	146	138	133	128	120	113
Fifth	224	188	173	164	158	152	142	135
Sixth	255	214	197	186	180	173	162	153

		CHASSIS

					Type
					TIG-Welded Aircraft-Grade Aluminum Monocoque Tubular/Machined-Billet Hybrid

					Roll Cage
					6-Point with Removable Side-Impact Bars (All 1.5" DOM)

					Nose & Tail Subframes
					1" 4130 Tube

					Torsional Ridgity
					30,000 Nm per Degree

Type	TIG-Welded Aircraft-Grade Aluminum Monocoque Tubular/Machined-Billet Hybrid
Roll Cage	6-Point with Removable Side-Impact Bars (All 1.5" DOM)
Nose & Tail Subframes	1" 4130 Tube
Torsional Ridgity	30,000 Nm per Degree

		SUSPENSION

					Type
					Machined 6061 & 7075 Aluminum Uprights & Control Arms

					Front
					Unequal-Length Double Wishbone, Strut

					Rear
					Unequal-Length, Double Wishbone, Push Rod

					Dampers
					Semi-Active Anti-Roll, Anti-Dive and Anti-Squat

					Number of Damper Tunes
					5

					Anti-Roll Bars
					Cockpit Adjustable Electomechanical; 5 Presets or Incremental Adjustment

					Springs
					450 lb. Front, 500 lb. Rear

					Nose Lift
					Hydraulic

					Ride Height & Wheel Rate
					Cockpit-Adjustable Hydraulically-Actuated Street & Track Modes

Type	Machined 6061 & 7075 Aluminum Uprights & Control Arms
Front	Unequal-Length Double Wishbone, Strut
Rear	Unequal-Length, Double Wishbone, Push Rod
Dampers	Semi-Active Anti-Roll, Anti-Dive and Anti-Squat
Number of Damper Tunes	5
Anti-Roll Bars	Cockpit Adjustable Electomechanical; 5 Presets or Incremental Adjustment
Springs	450 lb. Front, 500 lb. Rear
Nose Lift	Hydraulic
Ride Height & Wheel Rate	Cockpit-Adjustable Hydraulically-Actuated Street & Track Modes

		SUSPENSION MODES

					Street Mode
					Track Mode

					Minimum Ground Clearance
					TBD
					TBD

					Front Ride Height
					4.80"
				    4.02"

					Rear Ride Height
					5.12"
				    TBD

					Front Wheel:Damper Ratio
					1.57:1
				    1.57:1

					Rear Wheel:Damper Ratio
					1.50:1
				    1.00:1

					Front Wheel Rate
					177 lb/in.
				    TBD lb/in.

					Rear Wheel Rate
					225 lb/in.
				    TBD lb/in.

	Street Mode	Track Mode
Minimum Ground Clearance	TBD	TBD
Front Ride Height	4.80"	4.02"
Rear Ride Height	5.12"	TBD
Front Wheel:Damper Ratio	1.57:1	1.57:1
Rear Wheel:Damper Ratio	1.50:1	1.00:1
Front Wheel Rate	177 lb/in.	TBD lb/in.
Rear Wheel Rate	225 lb/in.	TBD lb/in.

		EXHAUST SYSTEM

					Headers
					Equal-Length 180-Degree Cross Over with 15-Degree Fabricated Merge Collectors

					Primary Tubes
					1.875" Stepped to 2" 321 Stainless Steel

					Cat-Back System
					3.5" Titanium; 4 Mufflers, an X-Pipe and Dual Cutouts

					Catalytic Converters
					G-Sport GEN2, EPA Compliant, 850HP Each

Headers	Equal-Length 180-Degree Cross Over with 15-Degree Fabricated Merge Collectors
Primary Tubes	1.875" Stepped to 2" 321 Stainless Steel
Cat-Back System	3.5" Titanium; 4 Mufflers, an X-Pipe and Dual Cutouts
Catalytic Converters	G-Sport GEN2, EPA Compliant, 850HP Each

		BRAKES, WHEELS & TIRES

					Rotor/Caliper Manafacturer & Series
					Brembo GT

					Front Rotors
					380 x 34mm, 2-Piece Floating, Cross-Drilled & Vented

					Rear Rotors
					380 x 28mm, 2-Piece Floating, Cross-Drilled & Vented

					Front Calipers
					6-Piston Monobloc

					Rear Calipers
					4-Piston Monobloc

					Power Assisted Braking
					Electromechanical

					Front/Rear Brake Bias
					Cockpit Adjustable

					Front Wheels
					19" x 10"

					Rear Wheels
					19" x 12"

					Front Tires
					275/30 ZR19

					Rear Tires
					325/30 ZR19

Rotor/Caliper Manafacturer & Series	Brembo GT
Front Rotors	380 x 34mm, 2-Piece Floating, Cross-Drilled & Vented
Rear Rotors	380 x 28mm, 2-Piece Floating, Cross-Drilled & Vented
Front Calipers	6-Piston Monobloc
Rear Calipers	4-Piston Monobloc
Power Assisted Braking	Electromechanical
Front/Rear Brake Bias	Cockpit Adjustable
Front Wheels	19" x 10"
Rear Wheels	19" x 12"
Front Tires	275/30 ZR19
Rear Tires	325/30 ZR19

		STEERING

					Type
					Rack and Pinion

					Power Assist
					Driver-Adjustable Electromechanical

					Lock-to-Lock
					TBD Turns

					Turning Radius
					TBD Feet

Type	Rack and Pinion
Power Assist	Driver-Adjustable Electromechanical
Lock-to-Lock	TBD Turns
Turning Radius	TBD Feet

		BODY & AERO

					Door Type
					Electromechanically Actuated Butterfly

					Rear Wing
					Active Split Airfoil with Configurable Angle of Attack (AoA) per Mode

					Rear Wing AoA Modes
					Braking, Straightaway, High-Speed Cornering & Low-Speed Cornering

					Number of Rear Wing Tunes
					5 (Cockpit Adjustable)

Door Type	Electromechanically Actuated Butterfly
Rear Wing	Active Split Airfoil with Configurable Angle of Attack (AoA) per Mode
Rear Wing AoA Modes	Braking, Straightaway, High-Speed Cornering & Low-Speed Cornering
Number of Rear Wing Tunes	5 (Cockpit Adjustable)

		DIMENSIONS

					Overall Length
					164”

					Width
					74”

					Height
					43”

					Wheelbase
					105"

					Weight
					TBD lbs

Overall Length	164”
Width	74”
Height	43”
Wheelbase	105"
Weight	TBD lbs

		AIR JACK SYSTEM

					Number of Jacks
					3 (Two in Rear and One in Front)

					Maximum Pressure
					435 psi / 30 bar
